Diamond Splicers

  1. Zeus D50 Fusion Splicer

    The ZEUS D50 Fusion Field termination kit provides fast, easy, and high performance field terminations of fibre optic connectors utilizing 1.25mm and 2.5mm ferrules, on both SM and MM fiber (250μm, 600μm and 900μm) and cable 1.6 to 3.1mm. The key to this system is DIAMOND’s new advanced "crocodile alberino" fusion ferrule assembly which eliminate the need of glue. The ferrule assembly, which is available in both PC and APC versions, provides a factory polished end face for low insertion loss and back reflection, as well as splice protection features. The fusion splice is performed and protected within the ferrule assembly eliminating the need for expensive and bulky splice housing, trays, holders, protectors, and fiber management.

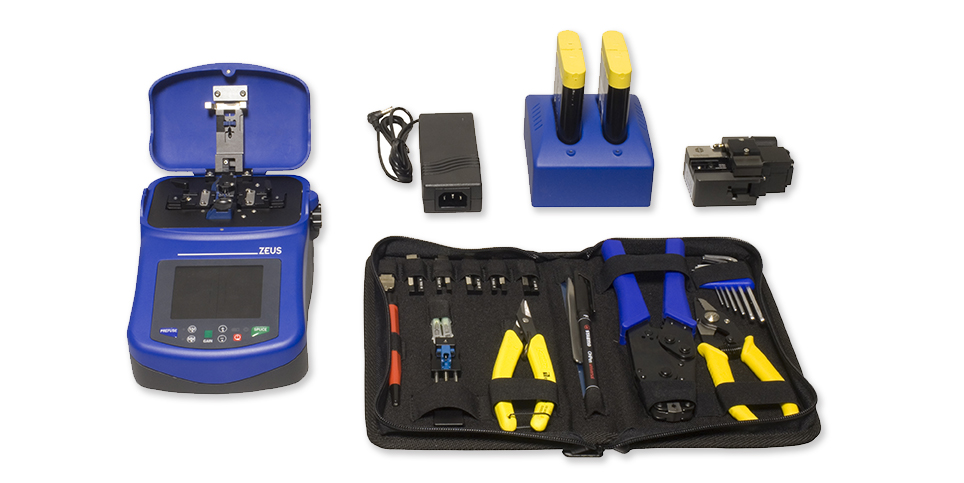

    The FUSION Termination Kit includes: fibre splicer, fibre cleaver, fibre stripping tool as well as different fibre holders, in order to allow easy, reliable field termination.


    Downloads


  2. Zeus D50 HE for Harsh Environment Connectors

    Based on the known Diamond ZEUS D50 Fusion splicer, which provides fast, easy, and high performance field terminations of Splice-On Connectors (SOC), we have developed a new Kit with the aim of simplifying the field repair or termination of outdoor connectors.

    The Kit contains everything that is needed to prepare, handle and splice tough outdoor/military and industrial cables with an outer diameter of 3 mm to 8 mm, including a cleaver and an automated stripping machine with heated jaws. Once the cable is fixed on a sliding holder, all three operations can be carried out without additional cable manipulation.


    Downloads


  3. Airbus Fibre Optic Repair Kit

    Diamond‘s Crocodile repair set is a patent pending solution, which provides a simple way to repair or add cable extensions to existing cable
    installations.

    Its light weight and robust construction permits to use it in harsh environments and under high mechanical stress. It is available for SM and MM
    service, for secondary coated fibre and fibre cables (1.6mm – 3.1 mm) Being part of the Crocodile technology, it is the completion of this versatile and modular field installation system which covers indoor, outdoor and harsh environments assemblies.

    Particularly, the Crocodile Repair Set ABS 1632-003 is qualified and adapted for repairs of the Airbus fibre optic cable ABS0963-003 LF.

    FEATURES AND BENEFITS

    • Simple, fast and reliable field repair, even in severe conditions
    • Integrated, small and robust splice protection and cable boots
    • Compact, light weight
    • Resistante to high cable tensions

    AVAILABLE AS

    • Repair Set P/N 1046361, (to be terminated with Diamond repair tool kit)
    • AIRBUS P/N ABS 1632-003


    Downloads
