Power Meters

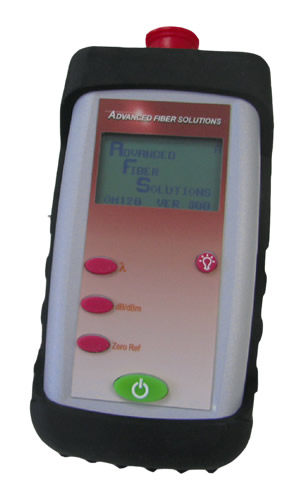

  1. AF-OM120A

    The OM120A is the ideal tool for measuring optical power of both multimode and single mode applications. With enhanced features such as 0.01dB resolution and Watts readout along with the popular Testing Procedure Guide for in field referencing the OM120A has become a leader in it class.

    All power meter detectors are potted in a threaded housing enabling adapter versatility and come standard with a 2.5mm universal adapter (AD-100).

    Features:

    • Multimode & Single Mode
    • 850nm, 1300nm, 1310nm, 1490nm & 1550nm
    • Absolute (dBm) / Watts & Relative (dB) Reading
    • 0.01dB or 0.1dB (user selectable)
    • Zero Reference Function
    • Back Light
    • Auto Power Off Function
    • TIA Testing Procedure Guide
    • NIST Traceable
    • Protective Rubber Boot

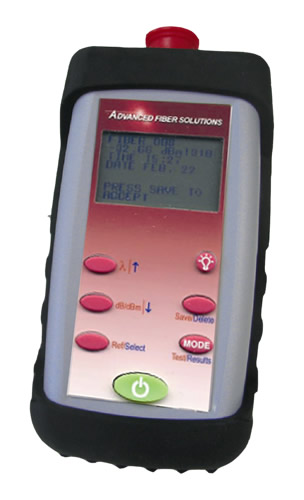

  2. AF-OM220A

    This Rugged optical power meter is the ideal tool for measuring optical power of both multimode and single mode applications. When used with an LED source or a laser source the AF-OM220 can be used to measure insertion loss (attenuation) in both multimode and single mode fiber optic cables whilst saving 500+ results and readings. Using the supplied Windows® Compatible software and USB or serial connection, test records may be transferred to a PC for storage, display, printing, and analysis.

    All power meter detectors are potted in a threaded housing enabling adapter versatility and come standard with 2.5mm universal adapters (AD-100).

    Features:

    • Single Mode and Multimode
    • 850nm, 1300nm, 1310nm, 1490nm & 1550nm
    • Absolute (dBm/mW) & Relative (dB) Reading
    • Zero Reference Function
    • Back Light
    • Auto Power Off Function
    • Stores 500+ Results (time and date stamped)
    • Windows® Compatible Software
    • NIST Traceable
    • Test Procedure Guide
    • Protective Rubber Boot

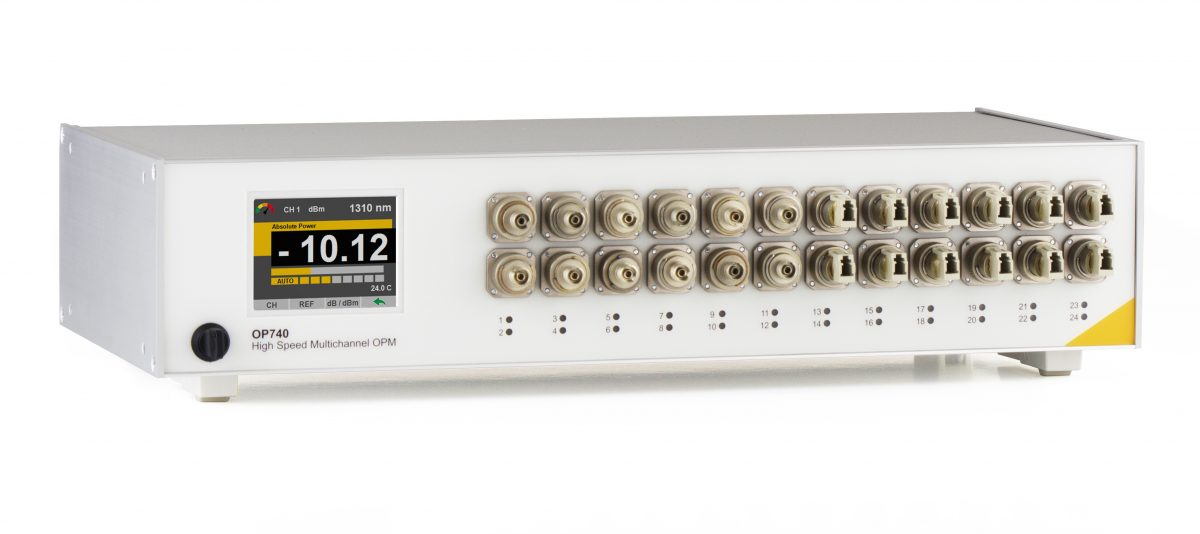

  3. OP740 High Speed Multichannel Optical Power Meter

    The OP740 offers a state-of-the-art solution for high-speed optical power measurement applications where multiple channels are needed. Unlike many other systems, this instrument is comprised of individual power meters allowing for simultaneous data acquisition over all channels with unparalleled speed.

    The OP740 is available with 4 to 24 channels and can be configured for an assortment of detector adapter options.

    • Up to 24 individual detectors in a 2U rack mountable mainframe
    • Able to read from all 24 channels simultaneously
    • Variable sample rate (up to 125,000 samples/second, 8μs sampling rate)
    • Full color touchscreen display
    • Single channel and user-configurable multichannel display
    • Coluor-coded Pass/Fail results
    • USB 3.1 communication
    • Universal adapter interface
    • Measurement range InGaAs: +6dBm to -72dBm Silicon: +3dBm to -65dBm
    • Broad wavelength spectrum InGaAs: 830nm to 1700nm Silicon: 400nm to 1100nm
    • Relative accuracy of 0.02dB




    Downloads

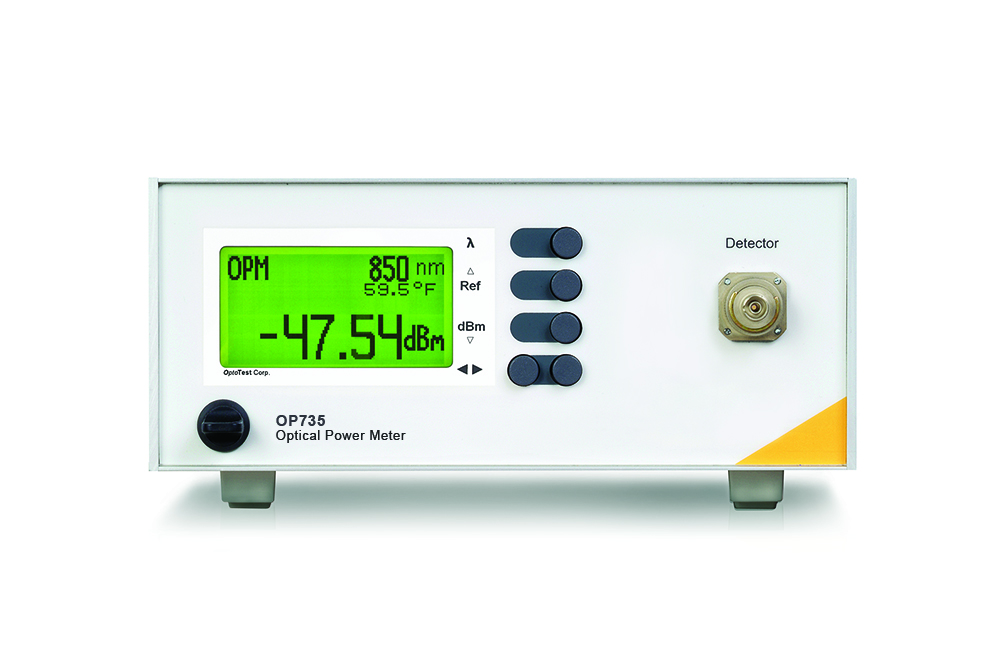

  4. OP735 Benchtop Optical Power Meter

    The OptoTest OP735 Benchtop Optical Power Meter can be configured with up to 4 channels and a mix of InGaAs, Silicon, and High Power Detectors. This unit is ideal as a compact,  stand-alone power meter or used in conjunction with a stabilized light source to measure insertion loss.

    Designed for high speed data acquisition on fibre optic components, the OP735 provides absolute or relative measurements with high resolution and tight linearity specifications.

    The unique remote head solution gives the user more flexibility with hard to manage components or bulky fibre optic cables. Our series of detectors include a remote head or an Integrating Sphere which is ideal for bare or ribbon fibres. Adapters are available for all common connector types including FC, ST, SC, LC, etc.

    • Up to 4 channels of individual optical power meters
    • Broad wavelength spectrum InGaAs: 830nm to 1700nm Silicon: 400nm to 1100nm
    • Measurement range InGaAs: +6dBm to -72dBm Silicon: +3dBm to -65dBm
    • Relative accuracy of 0.02dB
    • Measurement display resolution down to 0.001dB
    • Variable sampling rate via OPL-7 and custom DLL program
    • Can be controlled remotely via USB
    • Integrated temperature monitoring
    • Convenient benchtop size




    Downloads


  5. OPRH Remote Head Power Meters

    OptoTest’s Remote Head Power Meters (OPRH) create a highly adaptable fibre optic test environment when coupled with a supporting mainframe (eg OP940, OP815, etc.) and maintain the same high level of accuracy and repeatability as panel mounted detectors.

    With its ergonomic design and flexible cable, OptoTest’s OPRH can be manipulated for use with hard-to-manage test cables. They are also ideal for measuring fibres terminated with simplex connectors such as LC, SC or FC as well as high density connectors such as MTP® or MXC™.

    Remote heads are available in 1mm, 3mm, 5mm, and 10mm InGaAs, 2mm high power InGaAs, and 3mm Silicon varieties. The cable that connects the remote head to the mainframe is typically 40”, but can be customized to meet customer requirements.



    • 0.02dB accuracy
    • Measurement range
      • InGaAs: 1mm, 3mm (0dBm to -72dBm) 5mm (0dBm to -65dBm) 10mm (0dBm to -55dBm)
      • Silicon: 3mm (0dBm to -65dBm)
      • High Power InGaAs: 2mm (+27dBm to -55dBm)
    • Remote head is ideal for rigid cables that cannot easily be manipulated to use with a bench-top power meter
    • Ergonomic in manufacturing environments Interface to all OP mainframes such as OP710, OP815, OP940 with the triaxial port
    • Adapters for all common connector types including MTP®, PRIZM®, MXC™, 1.25mm, and 2.5mm
    • Bare fibre adapters available for simplex or ribbon fibre

    Downloads


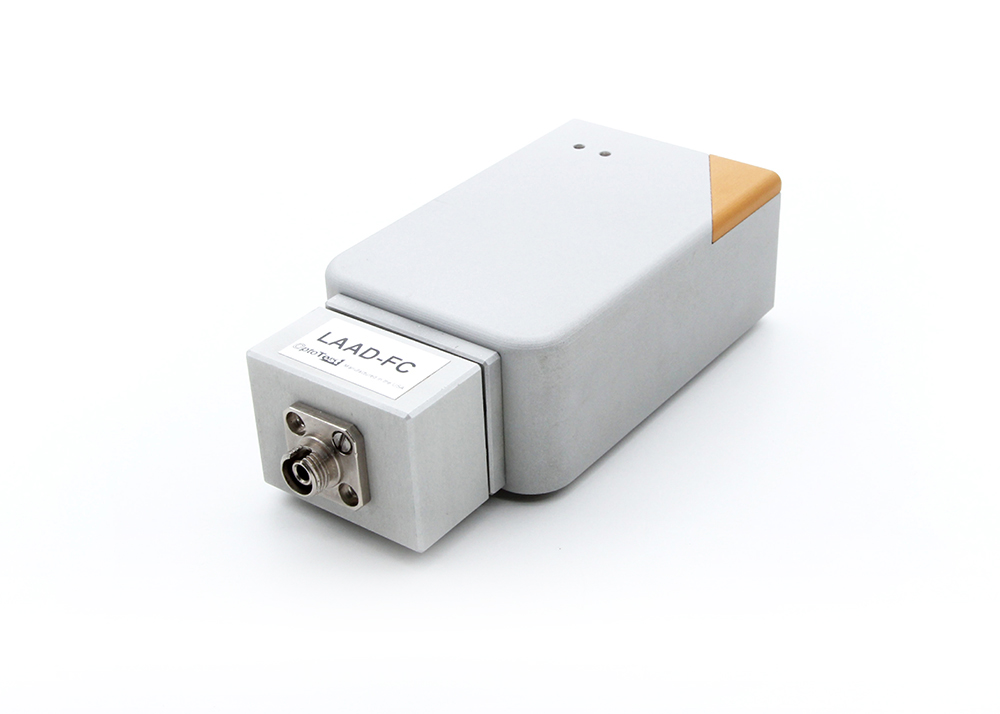

  6. OP712 USB Optical Power Meter

    The OP712 is a standalone USB powered and operated power meter. It can be integrated into the test and measurement process with any OptoTest Applications.

    Absolute power and insertion loss (IL) are accurately measured with this USB power meter when used in conjunction with the corresponding software such as OPL-LOG and OPL-MAX. It is ideal for measuring fibres terminated with simplex connectors such as LC, SC or FC. The OP712 can also be used for high density connectors such as MTP or MPO.

    An OP712 outfitted with a large area detector can be used to test high density connectors such as MTP/MPO.

    The LAAD series of adapters offer a quick-change magnetic interface and is available for all standard connector options.

    Using the OPL-SDK, the user can write custom applications to control the OP712.

    • Measurement range InGaAs: 1mm, 3mm, 5mm and 10mm Silicon: 3mm High Power InGaAs: 2mm
    • Remote head is ideal for rugged cables and ergonomic in manufacturing environments
    • Calibration factors stored directly within the OP712
    • System integration with OPL series software suite.
    • Adapters available for universal ferrule sizes (1.25/1.6/2.0/2.5mm) and common connector types such as MTP/MPO, MT Ferrule, MT-RJ, LC, FC, SC, PRIZM-LT, MXC etc.
    • Bare fiber adapters available for simplex or ribbon fiber
    • 0.02dB relative accuracy when optical loss is less than 10dB

    Downloads


  7. OP710 Multichannel Optical Power Meter

    The OP710 offers an economical approach for optical power measurement applications where multiple channels are needed. Unlike other systems, this instrument is built up with individual power meters allowing for unparalleled simultaneous data acquisition over all channels.

    The OP710 is available with 4 to 24 channels and can be configured for an assortment of detector and connector interfaces. With the rack mount option, multiple instruments can be combined and configured for even higher channel counts.



    • Up to 24 channels of individual optical power meters
    • Measurement range InGaAs: +6dBm to -72dBm Silicon: +3dBm to -65dBm
    • Broad wavelength spectrum InGaAs: 830nm to 1700nm Silicon: 400nm to 1100nm
    • Relative accuracy of 0.02dB
    • Measurement display resolution down to 0.001dB
    • Variable sampling rate via software
    • Can be controlled remotely via USB
    • Integrated temperature monitoring
    • Convenient 19-inch rackmount frame

     NOTE: Also available with High Power Detectors - 710HP


    Downloads

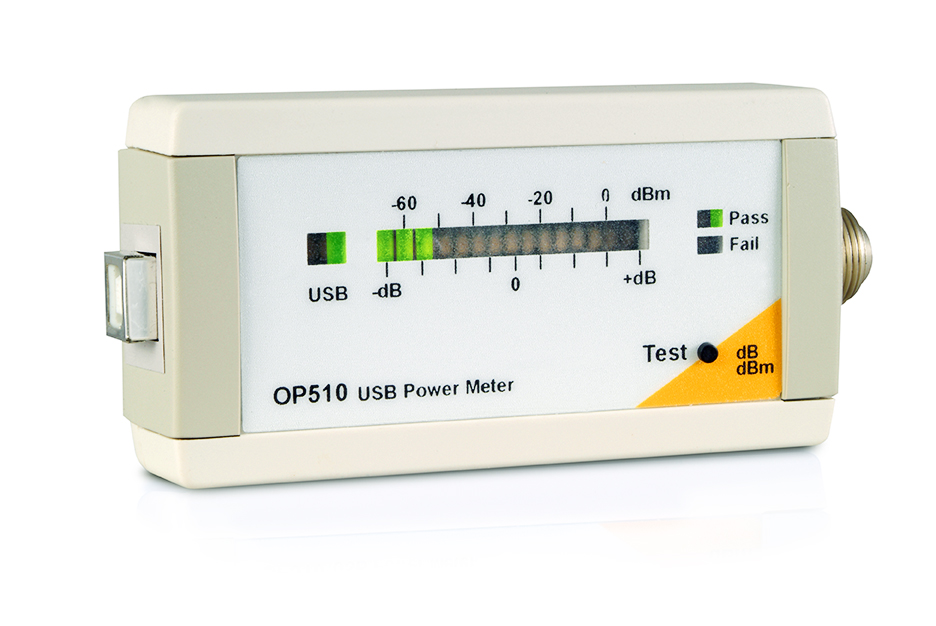

  8. OP510 Optical Power Meter Module

    The OP510 was designed as a cost effective solution for measuring, monitoring and logging of insertion loss or power fluctuations. The OP510 is a small (4”x2”x1.25”) portable module designed to minimize movement and bending of the reference and test cables. This results in stable, accurate and repeatable measurements.

    A unique feature of the OP510 is the 16 position bar graph. The display will show an approximate absolute power or relative power after referencing with the test button.

    The OP510 is offered with a choice of 1mm or 3mm InGaAs, 2mm High Power InGaAs, or 3mm Silicon detectors. It can be used with a universal adapter system or fixed optical interface to cover a wide variety of applications.

    The USB-powered module connects directly to the computer. OptoTest provides drivers and applications that allow the user to perform common measurement tasks such as EXCEL compatible data logging or time-stamped stability measurements.

    • Pass/Fail display with user-defined criteria
    • Broad wavelength spectrum InGaAs: 830nm to 1700nm Silicon: 400nm to 1100nm
    • Measurement range InGaAs: +6dBm to -72dBm Silicon: +3dBm to -65dBm
    • Relative accuracy of 0.02dB*
    • Measurement display resolution down to 0.001dB
    • Variable sampling rate via software
    • Integrated temperature monitoring eliminates the need for an additional temperature sensor during long term stability tests



    * Loss less than 10dB


    Downloads

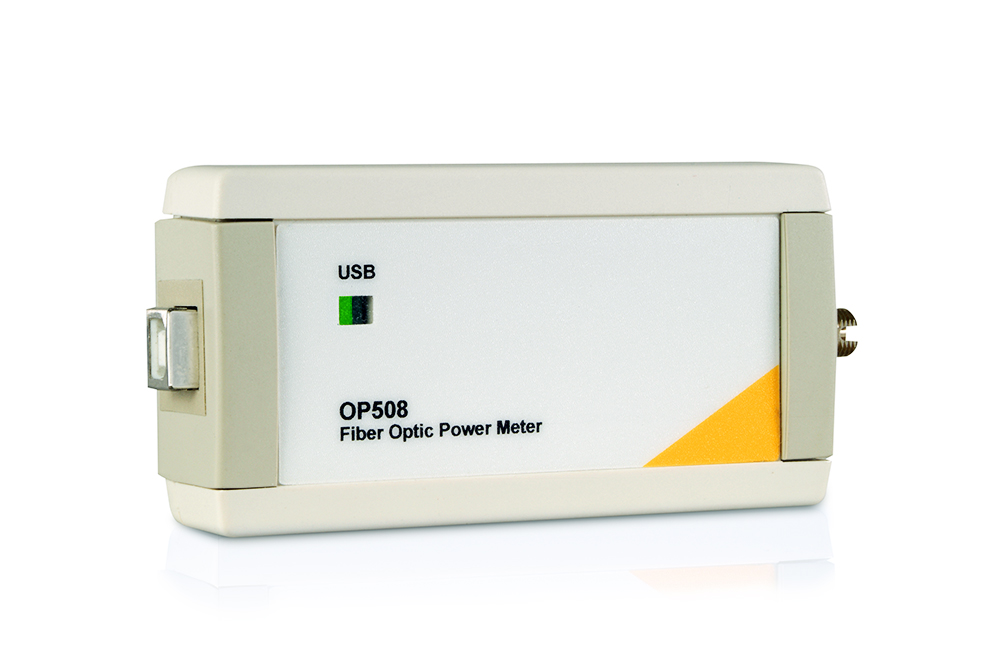

  9. OP508 Optical Power Meter Module

    The OP508 was specifically designed as a cost effective solution for measuring, monitoring and logging insertion loss or power fluctuations. It is a small (4”x2”x1.25”) portable module designed to minimize movement and bending of the reference and test cables. This results in stable, accurate and repeatable measurements.



    The OP508 is offered with a choice of 1mm or 3mm InGaAs, 2mm High Power InGaAs, or 3mm Silicon detectors; and most common connector options (FC, ST, SC, LC, etc…). It comes with a fixed optical interface allowing for a wide variety of applications. The USB-powered module connects directly to the computer. OptoTest provides drivers and applications that allow the user to perform common measurement tasks such as EXCEL data logging or time-stamped stability measurements.



    • Broad wavelength spectrum InGaAs: 830nm to 1700nm Silicon: 400nm to 1100nm
    • Measurement range InGaAs: +6dBm to -72dBm Silicon: +3dBm to -65dBm
    • Relative accuracy of 0.02dB*
    • Measurement display resolution down to 0.001dB
    • Fast data acquisition rate without compromising measurement accuracy
    • Variable sampling rate via software
    • Integrated temperature monitoring eliminates the need for an additional temperature sensor during long term stability tests



    * Loss less than 10dB


    Downloads


  10. VIAVI OLP-82 / 82P

    The new OLP-82 from VIAVI is the first handheld tool to combine pass/fail fibre inspection and optical power measurement (OPM) into one solution. As part of the new VIAVI SmartClass Fibre family, the OLP-82 helps service providers guarantee a lifetime of system performance from their network connectivity and gives users an essential tool for delivering best-in-class reliable networks to their customers.

    Features:

    • Field-portable OPM with multiple calibrated wavelengths from 780 to 1625 nm
    • Automated pass/fail analysis for fibre inspection and test
    • Supports both industry-standard and user-definable acceptance criteria
    • Available with integrated Patch Cord Microscope (PCM)
    • Integrated connector certification reports
    • Onboard storage for fibre inspection and test results
    • Connects to a PC via USB to export data and manage acceptance criteria using FiberChekPRO™ software
    • Two USB ports to connect additional devices such as a P5000i microscope
    • Automatic fibre-image centring
    • Modern, smartphone-style user interface with touch screen
    • Rugged, weather-proof design

    Downloads


  11. PowerChek OP-1 Optical Power Meter

    The PowerChek is an innovative new Optical Power Meter that equips fibre technicians with the ability to complete jobs faster, correctly, and on time – the first time. This compact Optical Power Meter not only measures optical power, it also provides additional benefits that allow them to ensure safe measurements, document results, generate reports, and integrate with other devices to enable numerous additional capabilities.

    Benefits

    • Eliminate the test lead when measuring optical power
      PowerChek connects directly with the bulkhead being tested by utilizing PowerChek connectors that attach to the device.
    • Always ensure a safe test
      By contacting the ferrule, instead of the fiber, the PowerChek will not damage the link under test.
    • Easily access your connections in any location
      Adjustable arm optimizes access to connector ports in densely populated and difficult to reach locations.
    • Pair with your mobile device over Bluetooth
      Use with FiberChekMOBILE app to measure & store readings in real-time, generate reports, and share results via email, etc.



    Applications

    • Measure power and loss in general and high power applications in long-haul, metro, access and local area networks with wavelengths ranging from 780 to 1625 nm
    • Use with VIAVI light source to detect modulation frequency and identify individual fibers.
    • Integrate with both FiberChekPRO and FiberChekMOBILE to run tests, export data, provide certification reports and manage acceptance criteria.
    •

    Key Features

    • Inter-Changeable PowerChek connectors provide direct testing to bulkhead port.
    • PowerChek connectors available in multiple types, including SC, LC, LC-APC, SC-APC, and more.
    • Bluetooth enabled for pairing with other devices
    • Micro-USB port to for PC connection to FiberChekPRO or charge device
    • Store up to 125 test results directly on the device.
    • Touch-screen display
    • Re-chargeable Li-ion battery provides 12 hours continuous use

  12. SmartPocket OLP-37

    Powerfully Simple: VIAVI Advances Handheld Optical Testing with the SmartPocket OLP-37

    Introducing an all-in-one wavelength selective power meter for testing FTTx and RFoG PON systems

    March 24, 2015 — VIAVI, the industry’s global fiber optic test leader, has announced the newest member of the SmartPocket family—the OLP-37 FTTX + RFoG and PON power meter. Field service teams worldwide use these essential fiber test tools to secure passive optical network (PON) quality and performance.

    The field-proof, compact optical power meter’s simple, easy to use interface boasts impressive capabilities such as:

    Embedded filter to selectively measure 1490 and 1550 nm wavelengths; RFoG and FTTx downstream signals to get precise information quickly about the active network elements and the passive distribution network quality

    Return-path testing for 1610 nm RFoG upstream signals to ensure the CPE is working within the specified standards

    A single optical port with field-interchangeable adapters for a quicker, more convenient workflow

    The OLP-37 offers a robust feature set to minimize capital expenses. Like all SmartPocket family members, it includes a three-year calibration interval which reduces operational costs.

    Use Case

    Broadband and access market dynamics are forcing operators and service providers to reduce turn-up times as much as possible while maintaining a best-in-class user experience. Fierce competition and the need to reduce costs only compound the pressure as their optical networks operate at capacity. Therefore, they use the highest possible splitter ratios and the longest fiber links to pack as many subscribers as technically possible onto one PON segment. The OLP-37 can precisely measure power in seconds to ensure that any FTTx and RFoG PON system is operating within its specified limits, thus avoiding network disruptions.
