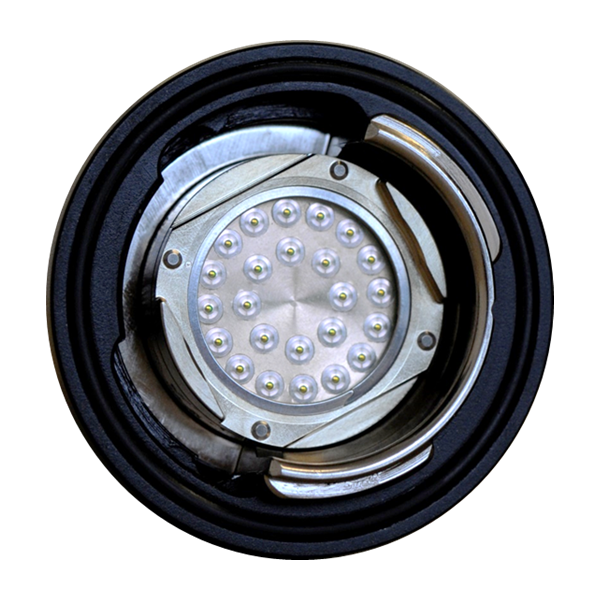

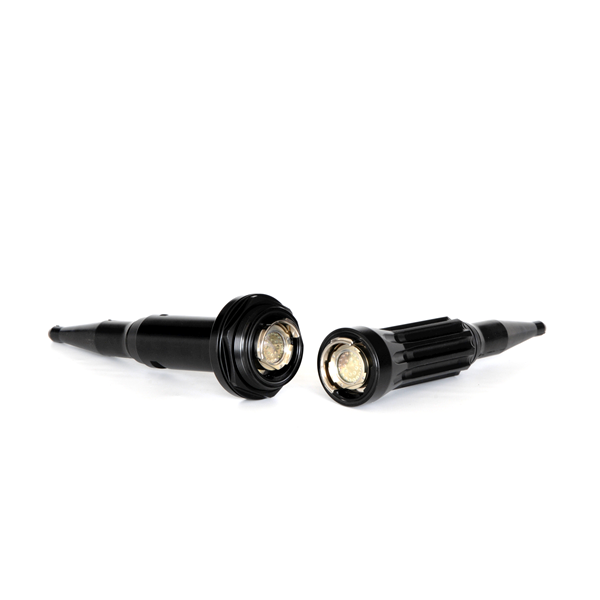

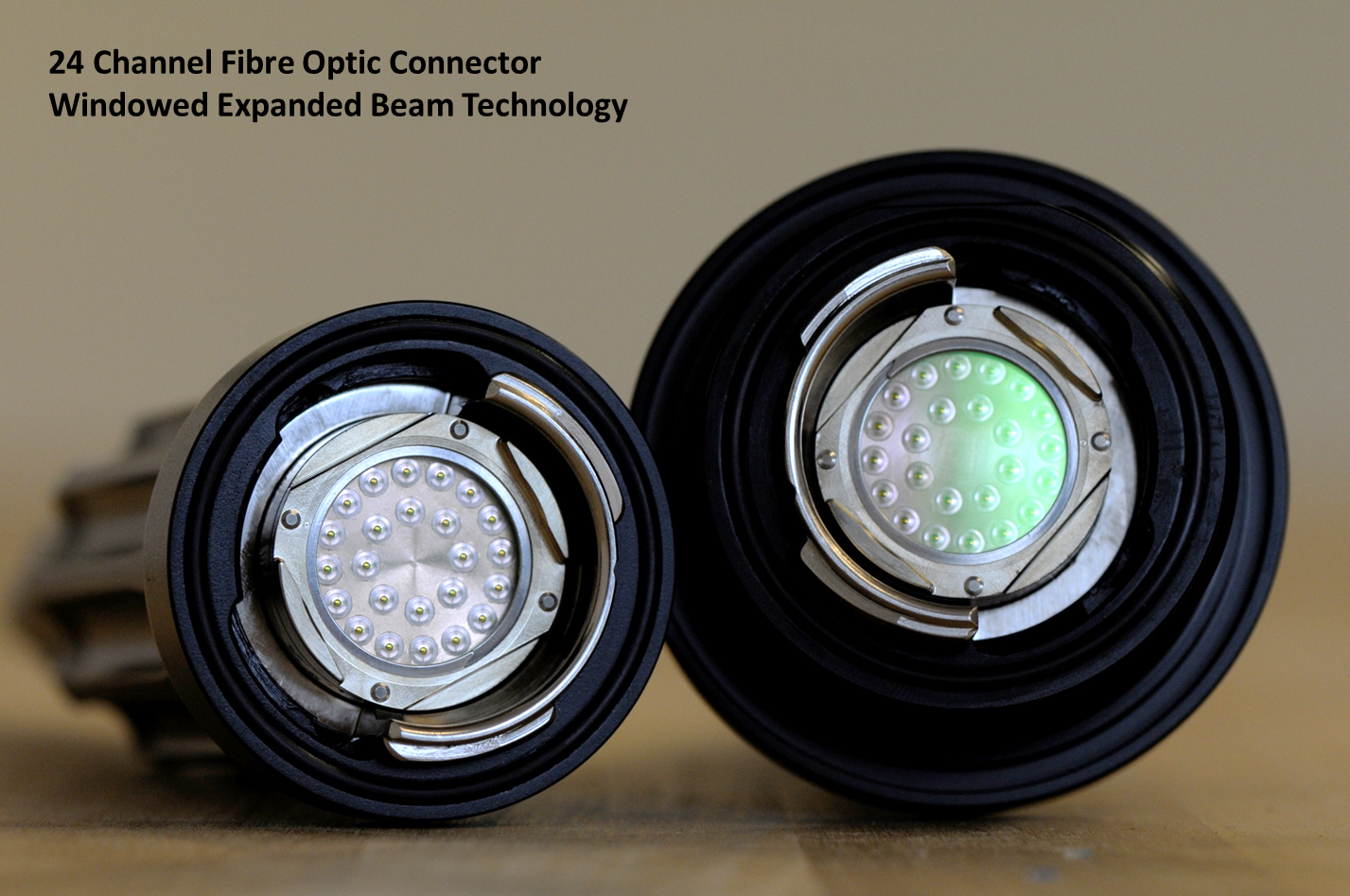

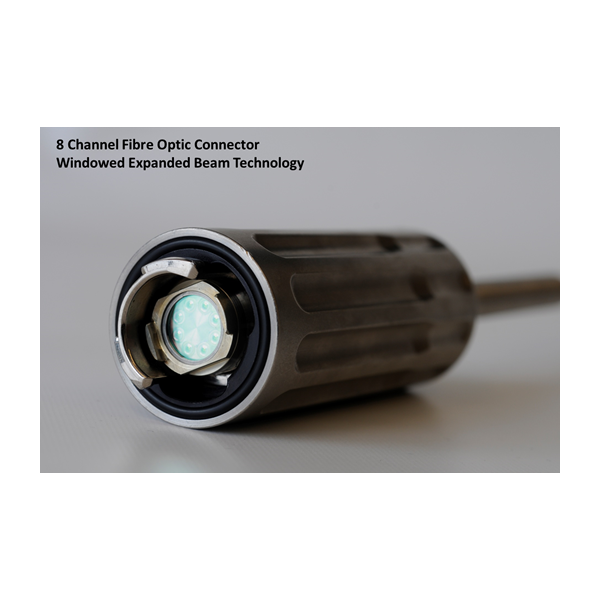

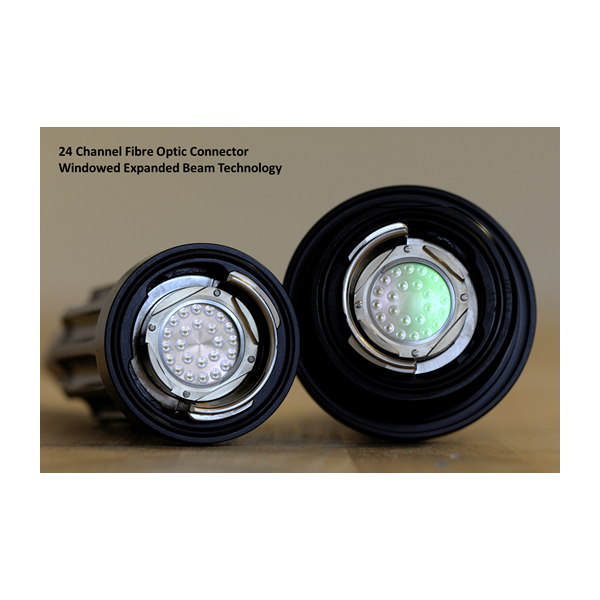

Windowed, hermaphroditic, expanded beam assemblies up to 24 channels

Connectors are almost tamperproof, intuitive mating; no exposed gaps on mated pairs; sand proof; tested - 500mtrs under water;, hot fog salt spray tested to 1300+ hours.

Several standard panel plug design options and specials where needed. Sapphire A/R ultra-hard coated windows.

Typical IL 0.7/1.2dB @ 1310nm, 50+dB ORL – true APC polish with air gap – ferrule not butted against the lens.

Hybrid optical channels available in one connector, data/copper also available by moving the window over to one side.
